Honkai: Star Rail Character Setup

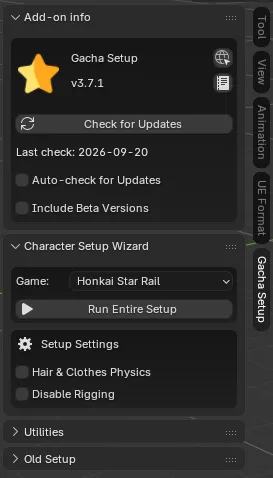

1. Opening the Setup Wizard

1. Press N in the 3D Viewport to open the sidebar.
2. Navigate to the Character Setup Wizard tab.
3. In the Game drop-down menu, select Honkai: Star Rail.

---

2. Importing Your Character

You can set up your model in one click using Run Entire Setup or step-by-step via Old Setup.

1. (Optional) Under Setup Settings, enable Hair & Clothes Physics to add dynamic physics to the hair and clothing. Enable Disable Rigging to skip rig generation and import materials + outlines only.
2. Click Run Entire Setup (or Set Up Character under Old Setup).

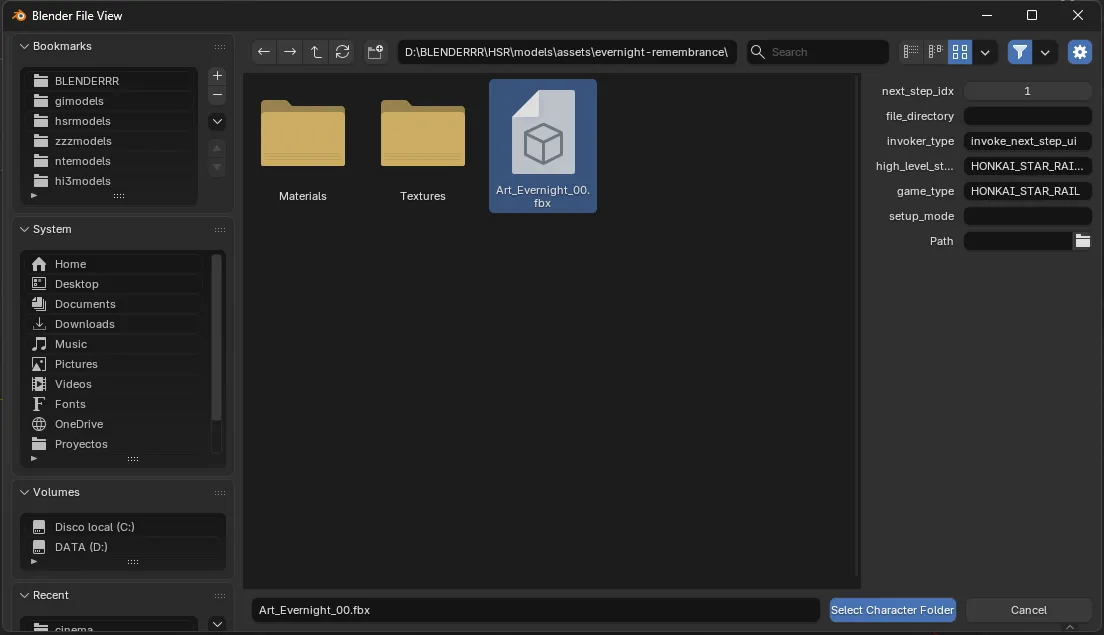

3. A file browser window will appear. Navigate to your character folder containing the .fbx model and textures (such as Avatar_Girl_March7th.fbx).
4. Click Select Character Folder.

---

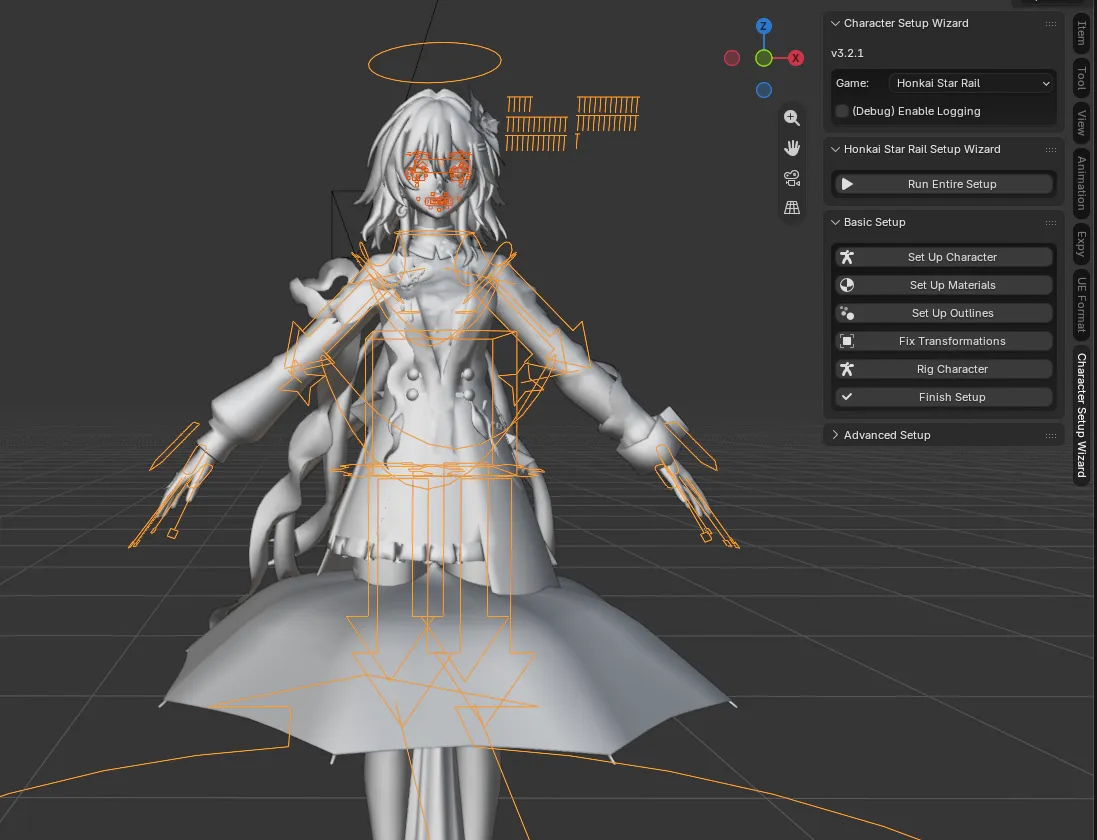

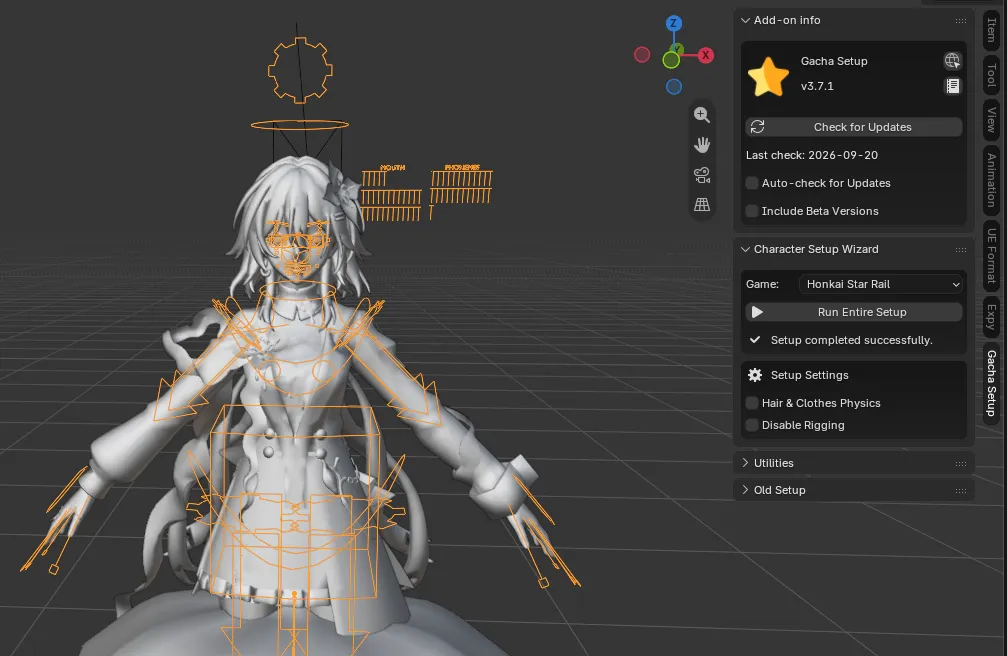

3. Automated Setup Pipeline

When running the setup, the add-on executes the following automated steps:

• Set Up Character: Imports the .fbx mesh, cleans vertex groups, and standardizes bone hierarchies for Honkai: Star Rail.
• Set Up Materials: Replaces default Blender materials with custom StellarToon Shader nodes, automatically binding diffuse (_fuse), lightmap (_map), and color ramp (_amp) textures.
• Set Up Outlines: Applies geometry-node inverted-hull outline modifiers to all character meshes for crisp line art rendering.
• Fix Transformations: Resets location, rotation, and scale transformations.
• Rig Character: Integrates the Isaac Face Rig and configures eye Y-drivers to prevent pupil displacement during blink or shape key animations.
• Finish Setup: Switches Color Management to Standard to preserve raw texture color accuracy.
