Genshin Impact Character Setup

1. Opening the Setup Wizard

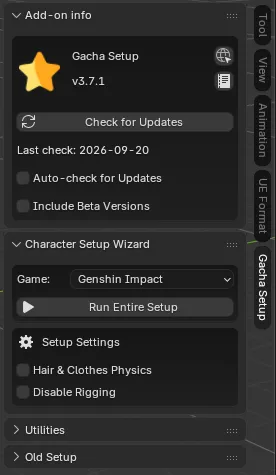

1. Press N in the 3D Viewport to open the sidebar.
2. Navigate to the Character Setup Wizard tab.
3. In the Game drop-down menu, select Genshin Impact.

---

2. Importing Your Character

You can set up your model in one click using Run Entire Setup or step-by-step via Basic Setup.

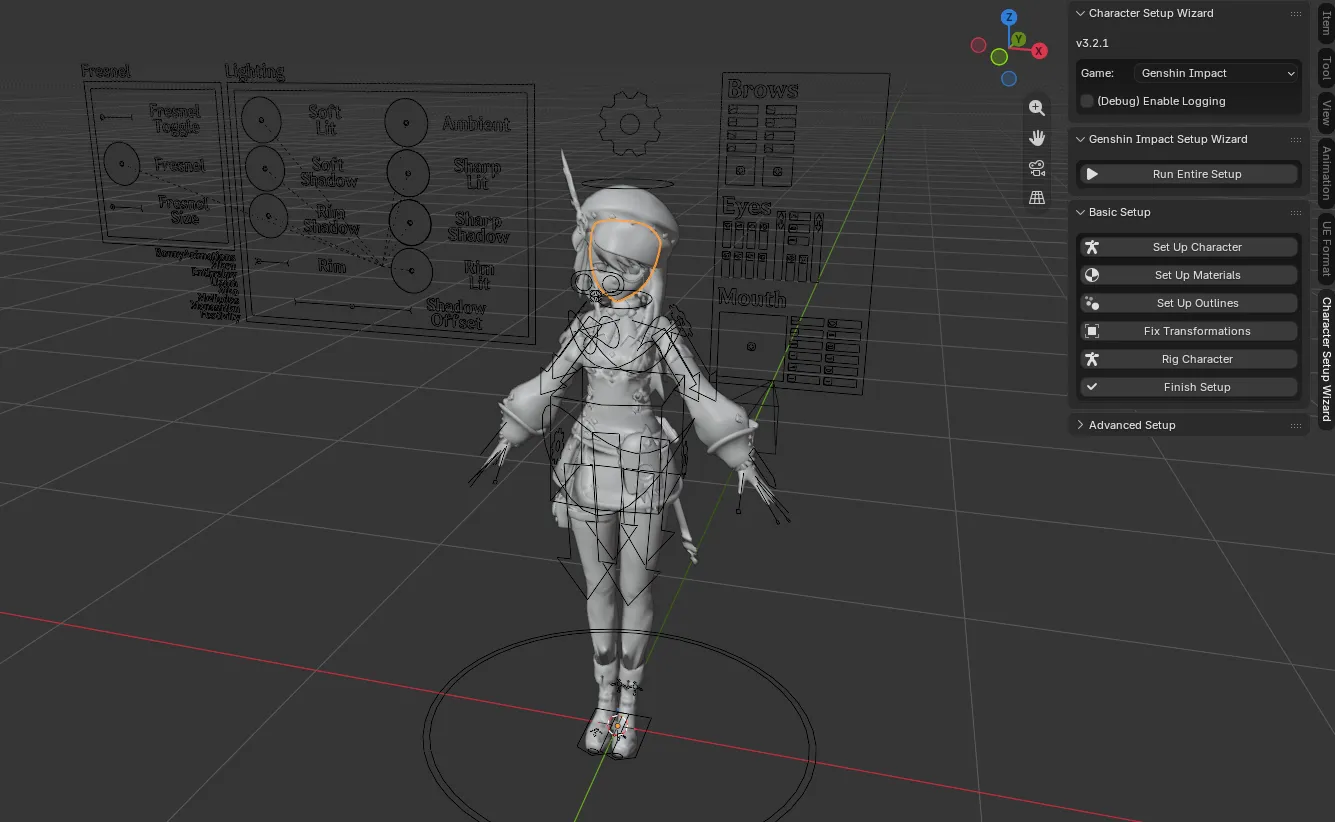

1. Click Run Entire Setup (or Set Up Character under Basic Setup).

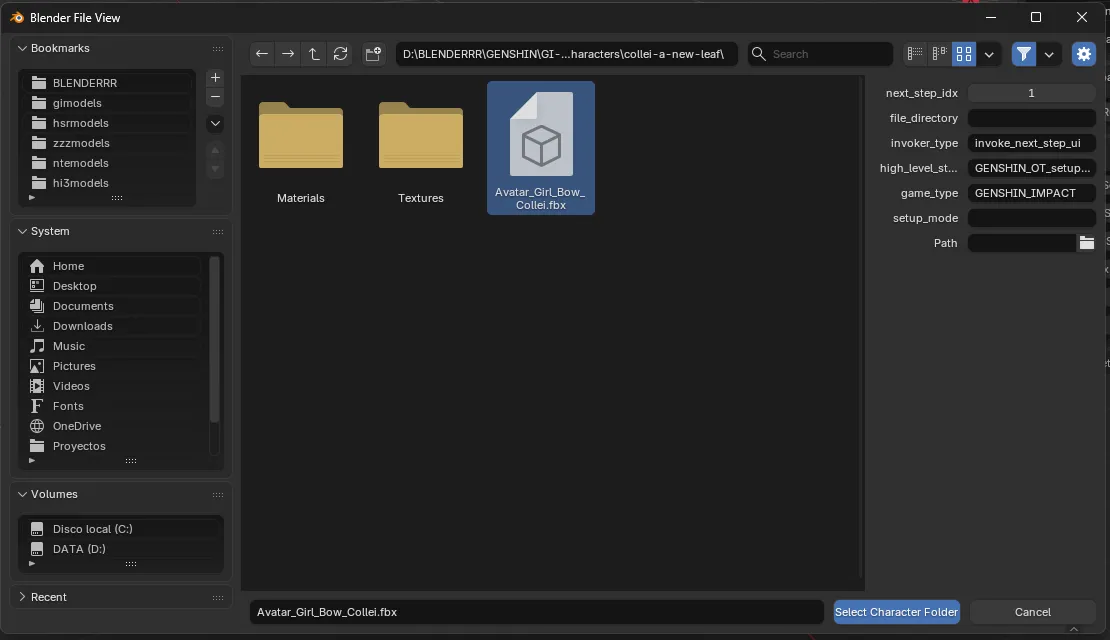

2. A file browser window will appear. Navigate to your character folder containing the .fbx model and textures (such as Avatar_Girl_Catalyst_Charlotte.fbx).
3. Click Select Character Folder.

---

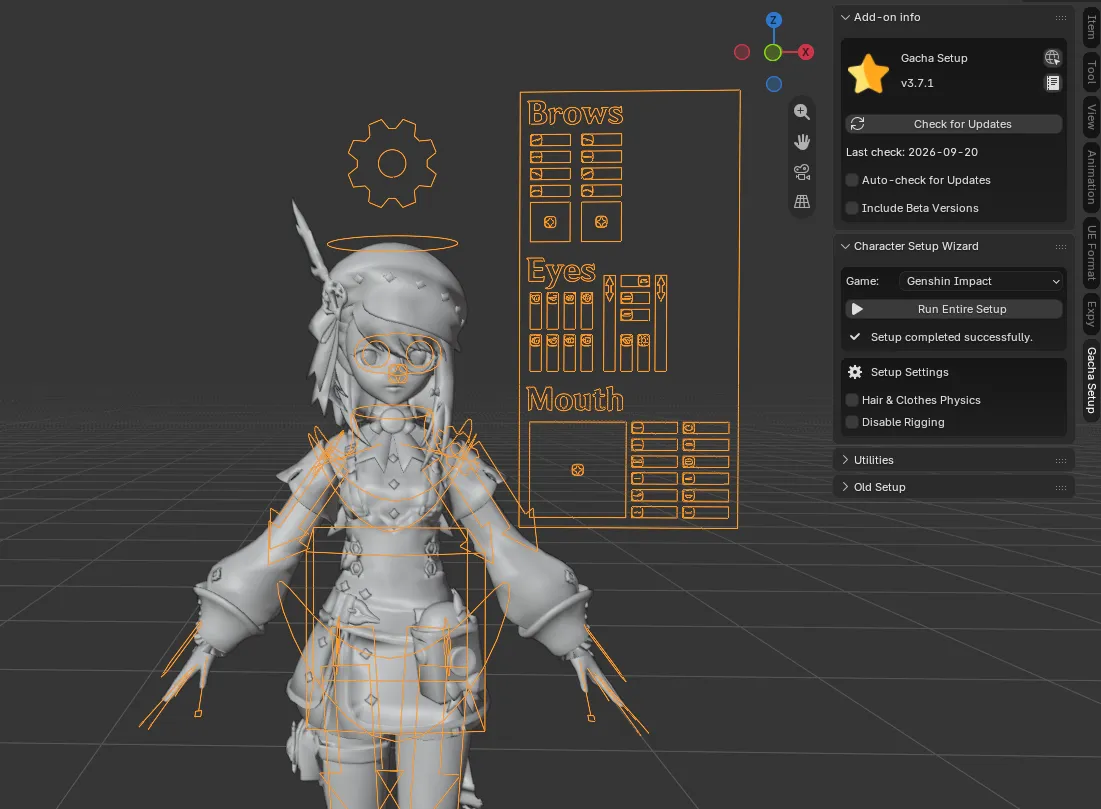

3. Automated Basic Setup Pipeline

When running the setup, the add-on executes the following automated steps:

• Set Up Character: Imports the .fbx mesh, cleans vertex groups, and standardizes bone hierarchies.
• Set Up Materials: Replaces default Blender materials with custom Festivity Toon Shader nodes, automatically binding diffuse (_fuse), lightmap (_map), and color ramp (_amp) textures.
• Set Up Outlines: Applies geometry-node inverted-hull outline modifiers to all character meshes for crisp line art rendering.
• Fix Transformations: Resets location, rotation, and scale transformations while linking facial drivers to light vectors.
• Rig Character: Configures control shapes and facial bone drivers.
• Finish Setup: Switches Color Management to Standard to preserve raw texture color accuracy.

---

4. Viewport Shading & Compositor Settings

To view Festivity shaders and real-time head shadow compositing in the viewport:

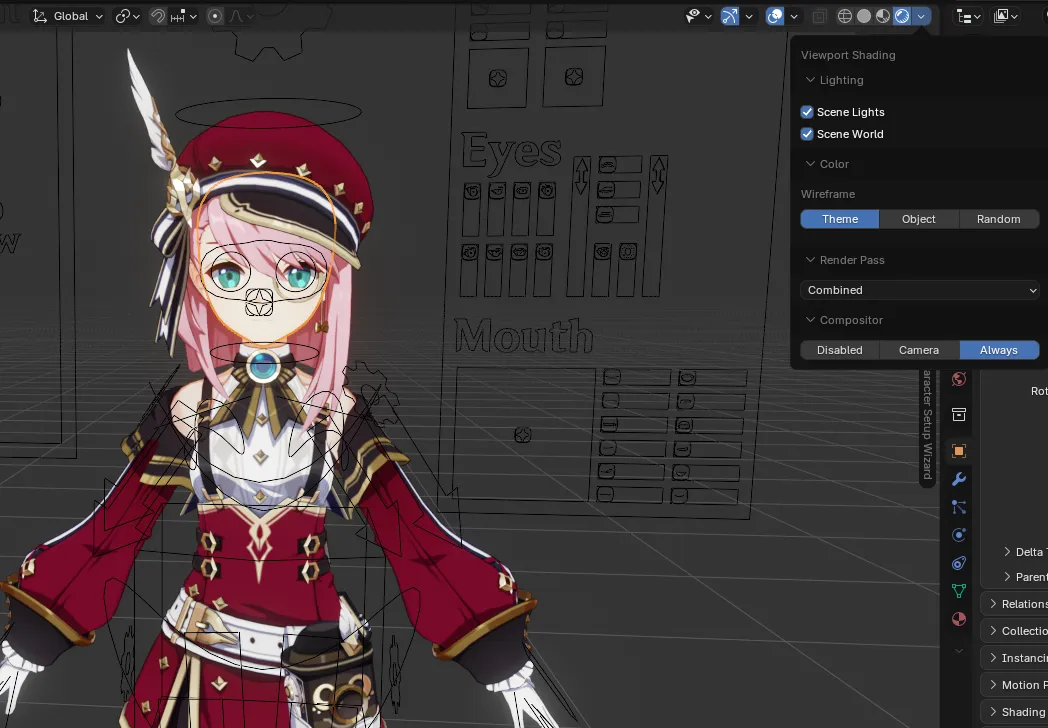

1. Open the Viewport Shading menu (top right of the 3D Viewport).
2. Under Lighting, enable Scene Lights and Scene World.
3. Under Compositor, set the dropdown mode to Always (or Camera).
